10cm Atom Probe

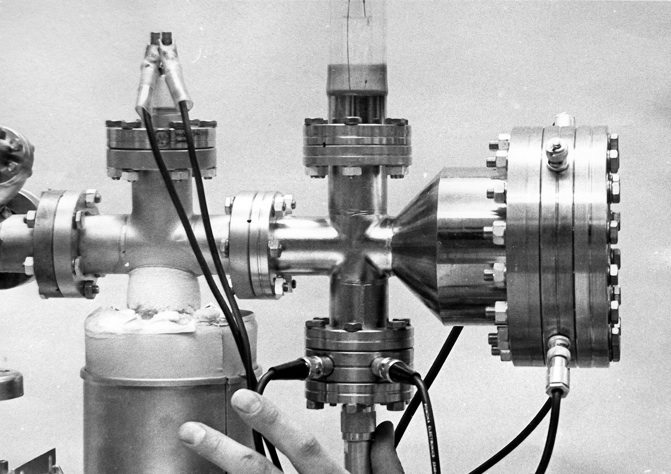

In 1973 J. A. Panitz introduced the 10 cm Atom Probe as a “new and simple atom probe which permits rapid, in depth species identification or the more usual atom-by atom analysis provided by its predecessors ... in an instrument having a volume of less than two liters in which tip movement is unnecessary and the problems of evaporation pulse stability and alignment common to previous designs have been eliminated” [14].

This was accomplished by combining Time of Flight Mass Spectrometry with a proximity focussed, dual flat channel plate detector, an 11.8 cm drift region and a 38° field of view. An FIM image or a desorption image of the atoms removed from the apex of a Field Emitter could be obtained [8,10] [73]. The 10-cm Atom-Probe is recognized as the progenitor of Three-Dimensional Atom-Probe Tomography [16].
